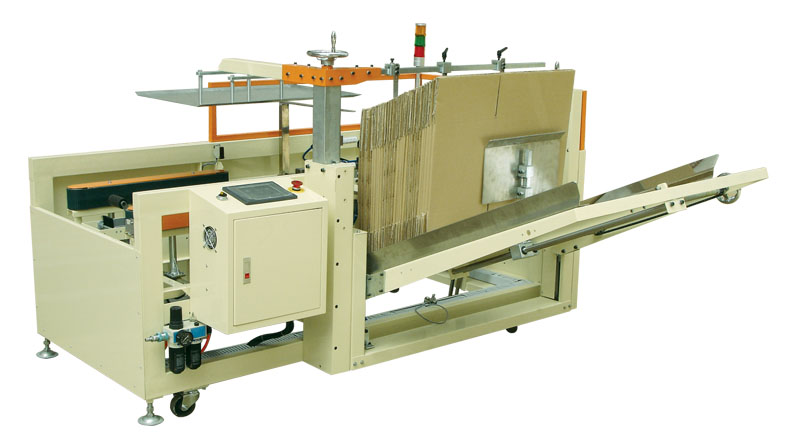

Carton erector/ Carton forming machine -GPK-40
box maker,case erector,carton froming machine,semi-automatic carton erector
Specification
  • Vertical storage is adopted for storaging carton blanks, for which carton blanks can be added at any time without stopping the machine;
  • It's suitable for forming and sealing cartons of the same size. If carton size need to be changed, the operator should adjust the machine manually(finishing in 2-3minutes);
  • It's rationally designed so that the forming, folding and sealing process are accomplished simultaneously;
  • All the parts are precise and durable,without causing any vibration in runing. Running steadily with long life;
  • Light in weight, high performance and speed.
Technical Parameters
Model
GPK-40
Power supply
220/380V 50Hz
Carton size
L200-450×W150-400×H100-350mm
Table height
Min.600mm, Max.720mm
Working speed
600-720ctns/h
Tape width
48mm, 60mm, 75mm (Choose one type)
Machine size
L2000×W1900×H1450mm
Machine weight
400kg
